Z941X‑16Q Electric OS&Y Resilient‑Seated Flanged Gate Valve Electric Rising‑Stem Resilient‑Seated Gate Valve, RRHX Electric Gate Valve, Remote‑Controlled OS&Y Soft‑Seal Flanged Gate Valve, Intelligent Electric Flanged OS&Y Gate Valve

Name: Z941X‑16Q Electric OS&Y Resilient‑Seated Flanged Gate Valve Electric Rising‑Stem Resilient‑Seated Gate Valve, RRHX Electric Gate Valve, Remote‑Controlled OS&Y Soft‑Seal Flanged Gate Valve, Intelligent Electric Flanged OS&Y Gate Valve
Brand: guanwo
SKU: z941x‑electric‑osy‑resilient‑gate‑valve.html

DN40-1200mm

Execution Standard

GB, JIS, ASTM, BS, GOST, DIN

Drive Type

Manual operation Electric operated Pneumatic operated

Application Industry

Municipal intelligent water‑works, tap‑water plant, urban water supply‑drainage, fire‑protection system, sewage‑treatment plant, power‑plant circulating‑water, building automation, industrial process pipeline

Material

QT450 304 316 2205 2507

Model

Z941X‑10Q, Z941X‑16Q(ductile iron QT450); Z941X‑16P(304 stainless steel); Z941X‑16C(WCB cast steel); Explosion‑proof Z941X‑16Q‑Ex

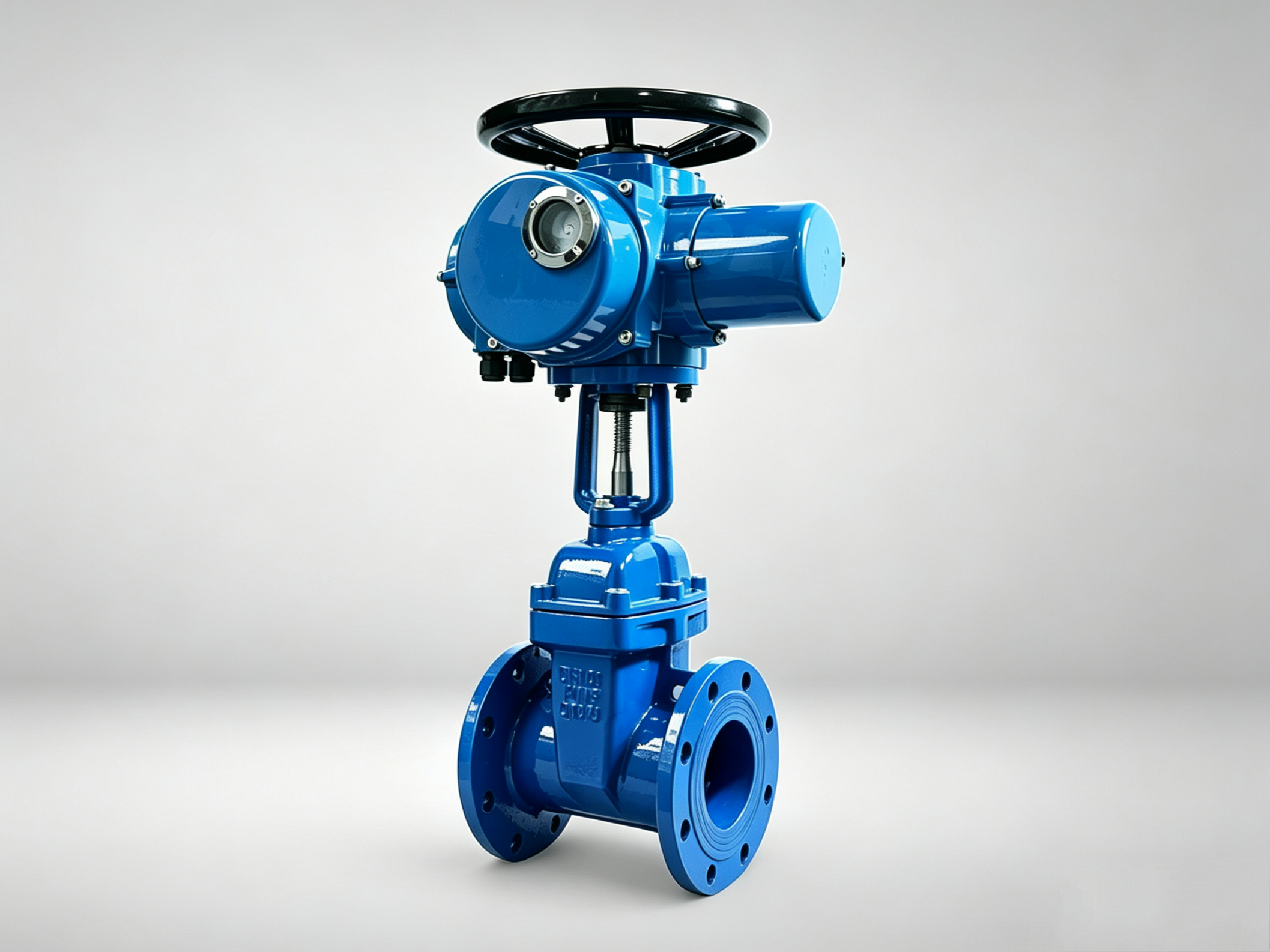

Ductile iron flanged body, OS&Y outside‑screw rising‑stem, visible stem indicates valve opening; fully EPDM rubber‑coated wedge, bubble‑tight shut‑off. Equipped with multi‑turn electric actuator, manual override available, local & remote control supported, on‑off or 4‑20mA modulating type optional. For water‑supply‑drainage, fire‑protection & industrial pipeline isolation, not for throttling service.

Consult Price Leave Message
