Butterfly Valve Series
D971F46-10/16Q Electric Wafer Lined Butterfly Valve, Intelligent Proportional Control Corrosion Resistant Valve
DN40-1200mm
Execution Standard
GB, JIS, ASTM, BS, GOST, DIN
Drive Type
Manual, pneumatic, electric, hydraulic, electromagnetic, self operated
Application Industry
Environmental desulfurization, wastewater treatment, electroplating & pickling, chlor-alkali chemical, waste gas treatment, fine chemical, pharmaceutical corrosive working conditions
Material
D971F46-10/16Q electric wafer F46 lined butterfly valve with anti-corrosion lining. Optional intelligent proportional regulation for strong corrosive chemical pipelines.
Model
D971F46-10C D971F46-16C D971F46-10P D971F46-10P D971F46-5K D971F46-10K D971F46-150LB
D971F46-10/16Q electric wafer F46 lined butterfly valve adopts ductile iron body with wafer connection. The cavity is fully lined with F46 to resist strong acid and alkali. Equipped with on-off actuator or 4-20mA intelligent regulating actuator for medium cut-off and flow control in corrosive pipelines.

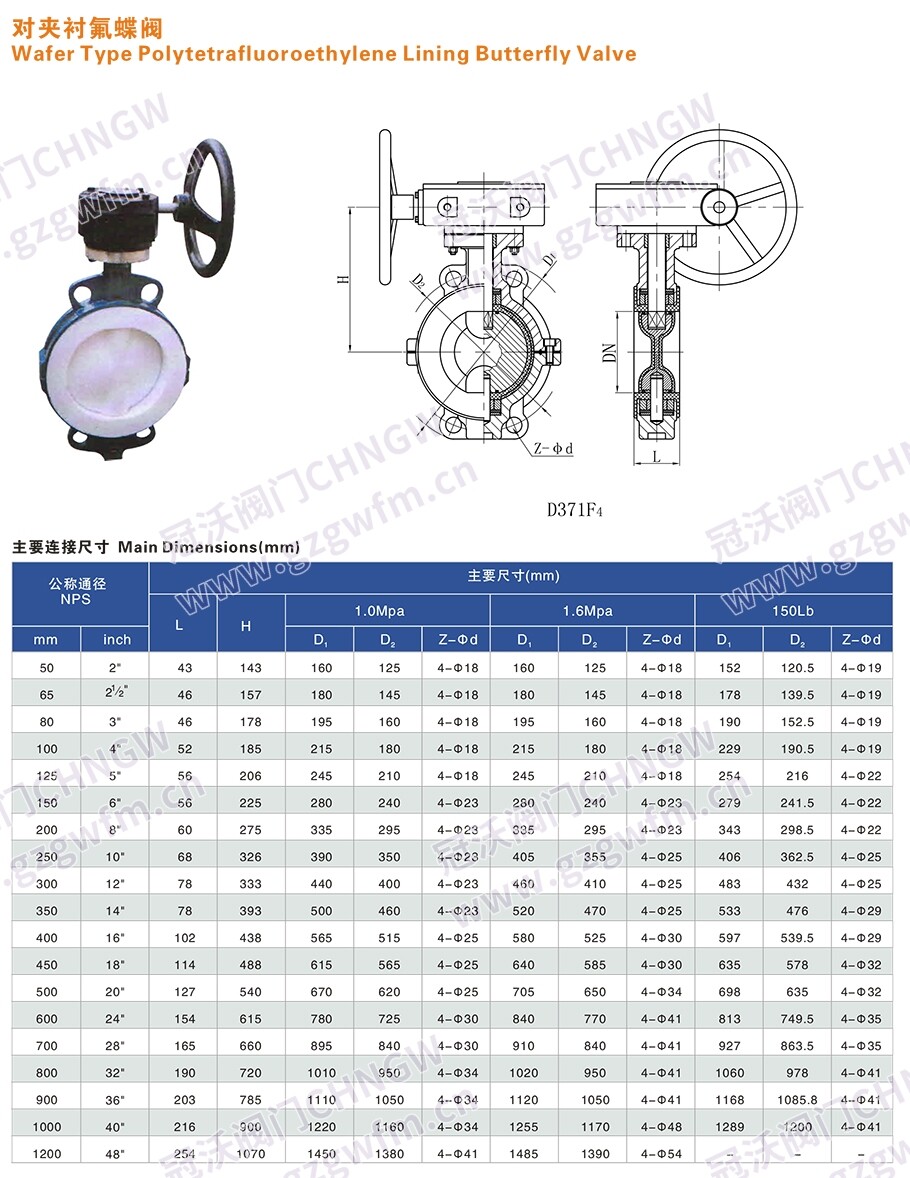

Technical Specifications
Butterfly Valve Series
