Model GL41W-16T Brass Flange Y-Strainer, also known as brass flange Y-strainer, flange brass pipeline dirt strainer, pipeline pre-impurity strainer, central air conditioning HVAC flange brass strainer and large diameter brass flange Y-strainer for water supply
Brass Valve Series

Model GL41W-16T Brass Flange Y-Strainer, also known as brass flange Y-strainer, flange brass pipeline dirt strainer, pipeline pre-impurity strainer, central air conditioning HVAC flange brass strainer and large diameter brass flange Y-strainer for water supply

DN15-200mm

Execution Standard

GB, JIS, ASTM, BS, GOST, DIN

Application Industry

Widely used in commercial building central air conditioning HVAC, hotel main pipelines, residential pump room water supply, municipal water supply and drainage projects, air energy heating & cooling systems, water plant pre-filtration and park heating pipelines.

Material

HPb59-1 C37700 / CW617N HPb57-3 CW614N H62 C28000 / CW508L

Model

GL41W-10T GL41W-16T

Model GL41W-16T Brass Flange Y-Strainer adopts HPb59-1 forged brass body and flange connection with Y-shaped structure. Built-in 304 stainless steel screen intercepts rust, sediment and solid impurities to protect water pumps, pressure reducing valves and hydraulic control valves. The detachable screen is easy to clean with low flow resistance. It is generally installed upstream of main pipelines for pump rooms, large building central air conditioning and municipal water supply systems.
Consult PriceLeave Message

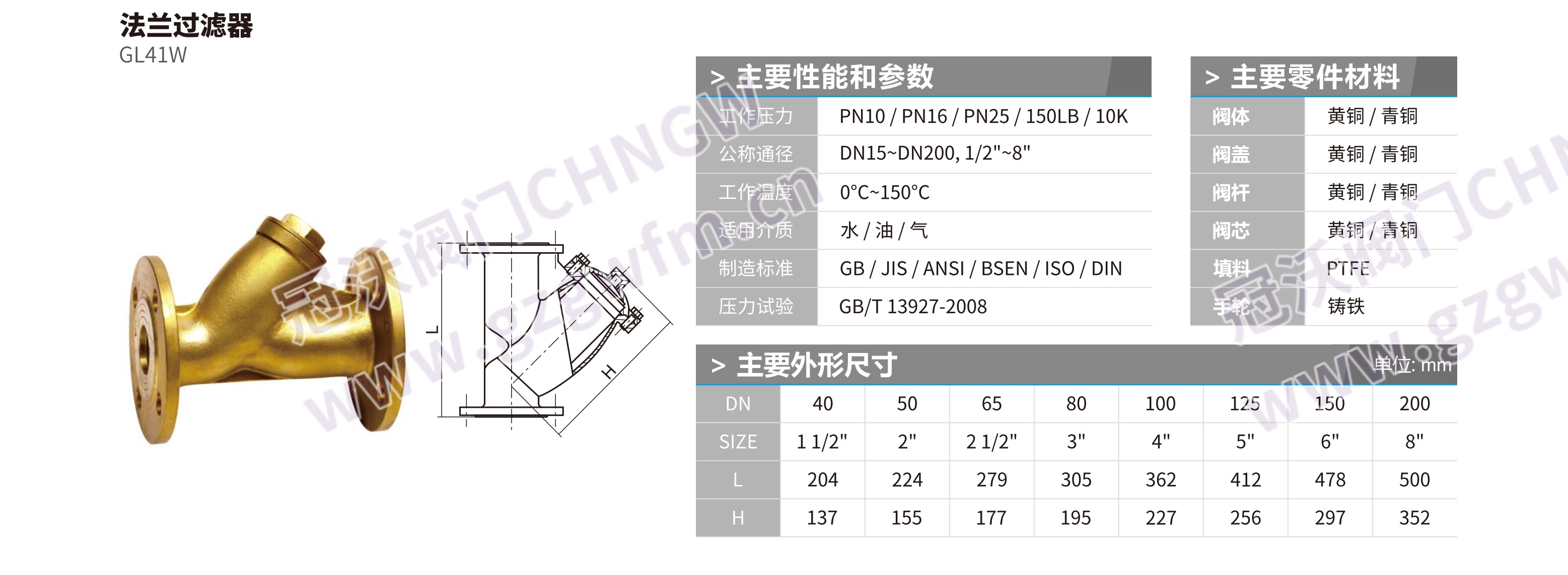

Technical Specifications

Model GL41W-16T Brass Flange Y-Strainer, also known as brass flange Y-strainer, flange brass pipeline dirt strainer, pipeline pre-impurity strainer, central air conditioning HVAC flange brass strainer and large diameter brass flange Y-strainer for water supply Technical Specifications
