H74 Thin Wafer Single Plate Swing Check Valve Thin Wafer Check Valve, Single Plate Wafer Swing Non-return Valve, Wafer Thin Type Non-return Valve
Check Valve Series

H74 Thin Wafer Single Plate Swing Check Valve Thin Wafer Check Valve, Single Plate Wafer Swing Non-return Valve, Wafer Thin Type Non-return Valve

DN15-1200mm

Execution Standard

GB, JIS, ASTM, BS, GOST, DIN

Application Industry

Petrochemical, power plant, HVAC, water supply & drainage, gas, marine, industrial pipelines

Material

WCB Carbon Steel, 304 Stainless Steel, 316L Stainless Steel

Model

H74H-16C、H74H-25C、H74H-40C、H74H-16P、H74H-25P、H74H-40P、H74H-150LB、H74H-300LB、H74H-10K、H74H-20K、H74Y-16C、H74Y-25C、H74Y-40C、H74Y-16P、H74Y-25P、H74Y-40P、H74Y-150LB、H74Y-300LB、H74Y-10K、H74Y-20K、H74W-16C、H74W-25C、H74W-40C、H74W-16P、H74W-25P、H74W-40P、H74W-150LB、H74W-300LB、H74W-10K、H74W-20K

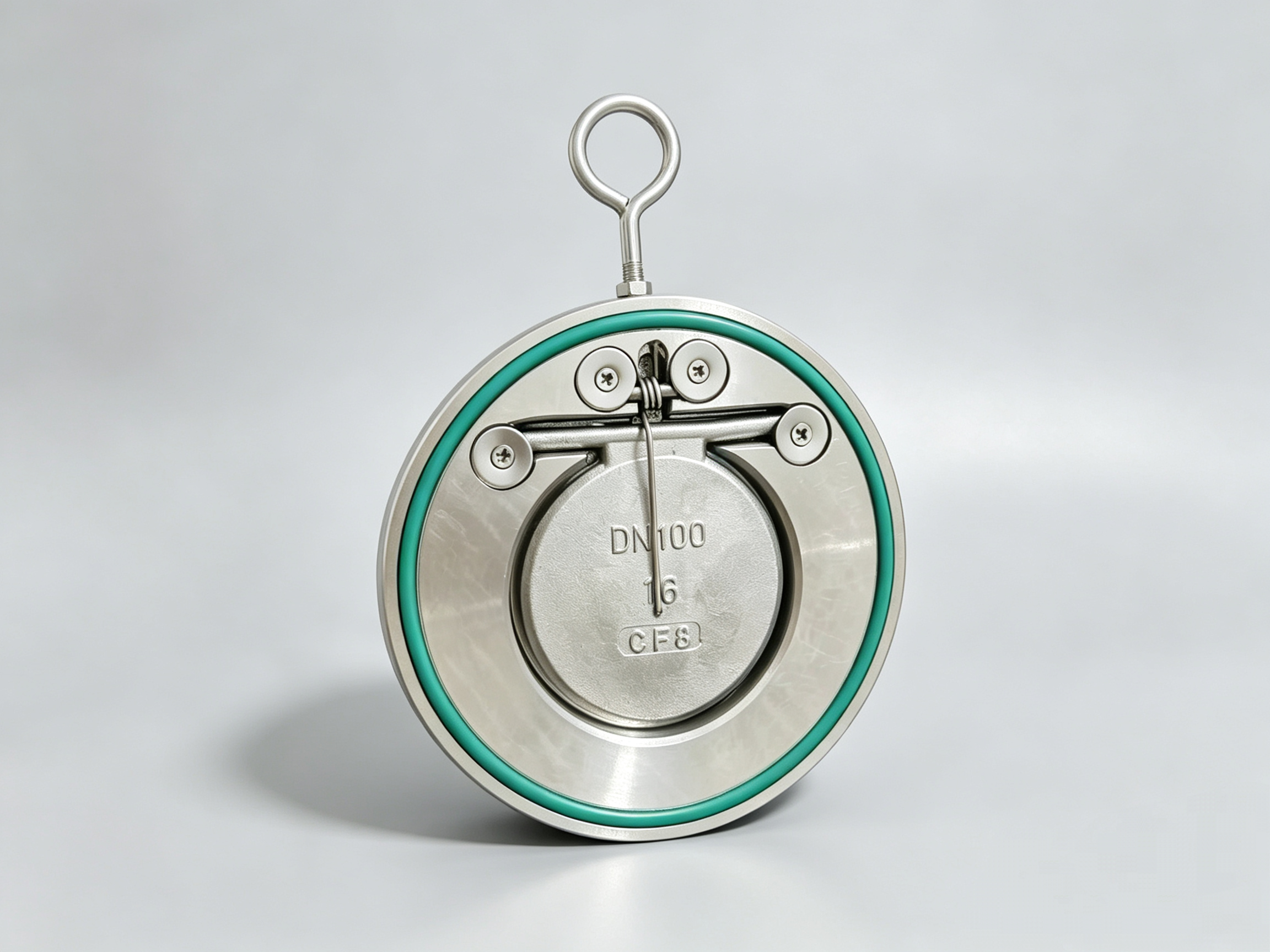

H74 thin check valve adopts single plate swing wafer structure. Thin body, installed between two flanges with small space occupation. Fast opening & closing response and low flow resistance. Body optional WCB carbon steel /304/316L stainless steel, various seals available to prevent medium backflow.
Consult PriceLeave Message

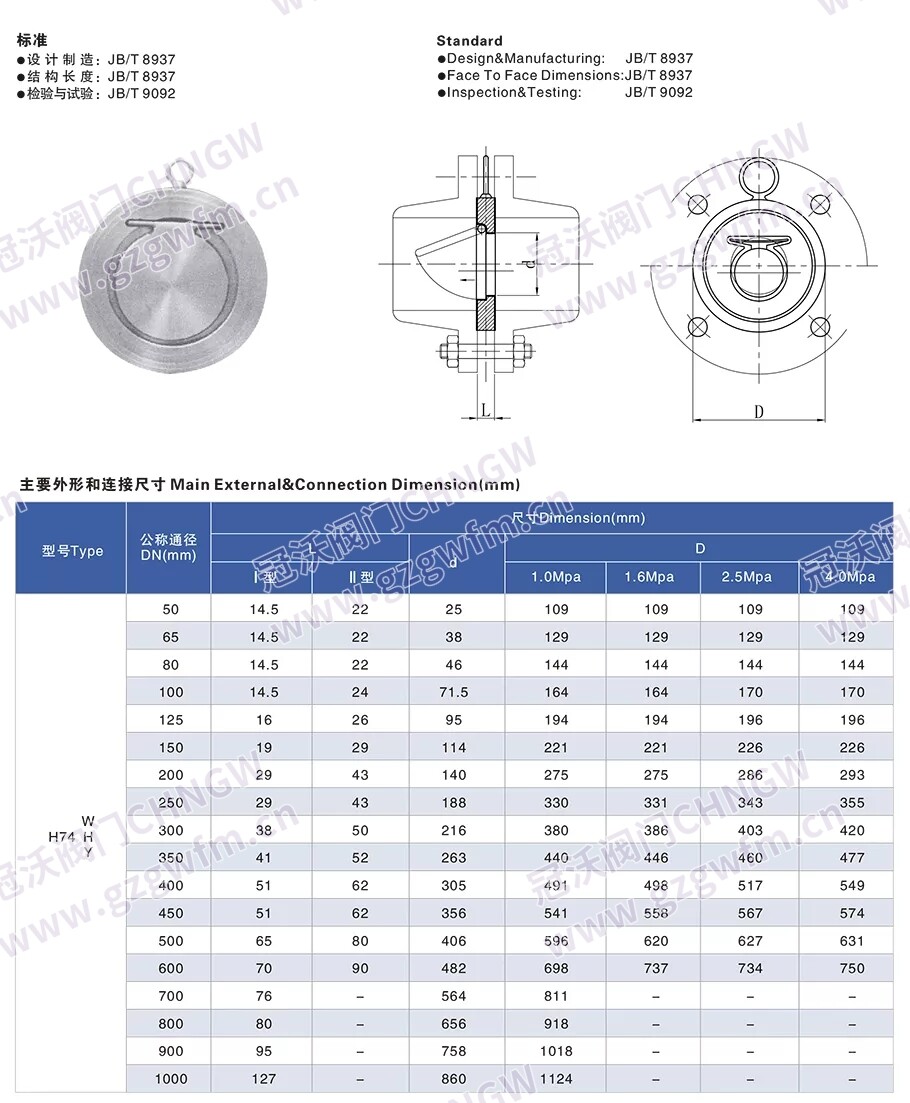

Technical Specifications

H74 Thin Wafer Single Plate Swing Check Valve Thin Wafer Check Valve, Single Plate Wafer Swing Non-return Valve, Wafer Thin Type Non-return Valve Technical Specifications
