Ball Valve
KITZ Brass Screwed Ball Valve, KITZ T / TL Series Brass Ball Valve, JIS Japan KITZ Brass Threaded Ball Valve Brass Thread Ball Valve, KITZ 2-Piece Brass Threaded Shut-off Ball Valve
DN15-100mm
Application Industry
HVAC, water supply & drainage, gas system, air compressor, general industrial pipeline, water treatment
Material
Forged Brass C3771BE
Model
T, TL, ZT, SZA, TK, #68, #58; Sizes DN8,DN10,DN15,DN20,DN25,DN32,DN40,DN50; 1/4",3/8",1/2",3/4",1",1-1/4",1-1/2",2"

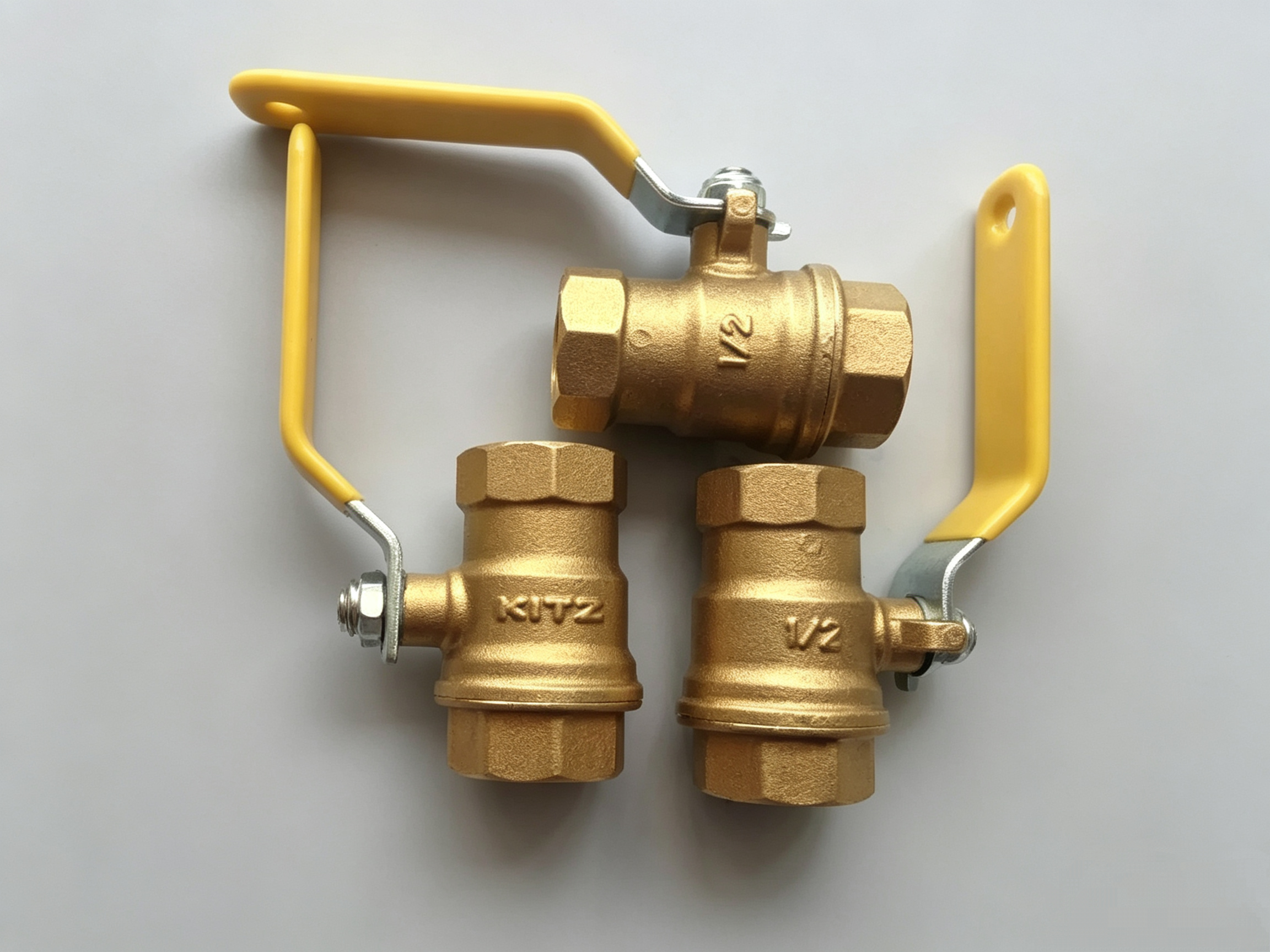

Japan KITZ T/TL series brass threaded ball valve, 2-piece forged brass body, female threaded connection, thread options JIS B0203 / BS21 / NPT. Full bore / reduced bore optional, PTFE seat, FKM stem seal, 90° quick lever operation, anti-blowout stem design, corrosion resistant. Suitable for water, oil, gas and compressed air, JIS standard, locking handle available, can be fitted with pneumatic / electric actuator.
Ball Valve
