ZCG Stainless Steel Flange High Temperature 2-Way Solenoid Valve With Heat Sink

Name: ZCG Stainless Steel Flange High Temperature 2-Way Solenoid Valve With Heat Sink
Brand: Guanwo Valve
SKU: zcg-high-temp-solenoid-valve

Also known as: ZCG high temperature solenoid valve,heat sink solenoid valve,flange steam solenoid valve,stainless steel high temp solenoid valve,thermal oil solenoid valve,AC220V high temperature solenoid valve,DN40 high temperature solenoid valve

DN15-600mm

Execution Standard

JB/T7352

Drive Type

Operation:Piston type solenoid drive; Normally closed as standard: open on power on, close on power off; normally open and explosion-proof coil customizable

Application Industry

Application:Thermal oil heater, steam boiler, heating HVAC, printing and dyeing equipment, food high temperature equipment, chemical high temperature pipeline

Material

304 316L 2205

Model

ZCG-15、ZCG-20、ZCG-25、ZCG-32、ZCG-40、ZCG-50、ZCG-65、ZCG-80、ZCG-100、ZCG-125、ZCG-150、ZCG-200、ZCG-250、ZCG-300

ZCG high temperature flange solenoid valve, equipped with external metal heat sink to isolate high temperature and protect coil, flange connection, 2-way piston structure, normally closed as standard, open when energized and close when power off. Valve body 304 stainless steel, 316 stainless steel optional. Suitable for high temperature steam, thermal oil, high temperature hot water and other media, solve the problem that ordinary solenoid valve cannot bear high temperature. Optional voltage AC220V, DC24V, PTFE seal optional, high temperature resistance and good sealing performance. Used for automatic on-off control of boiler, heating, thermal oil equipment and high temperature pipeline.

Consult Price Leave Message

Technical Specifications

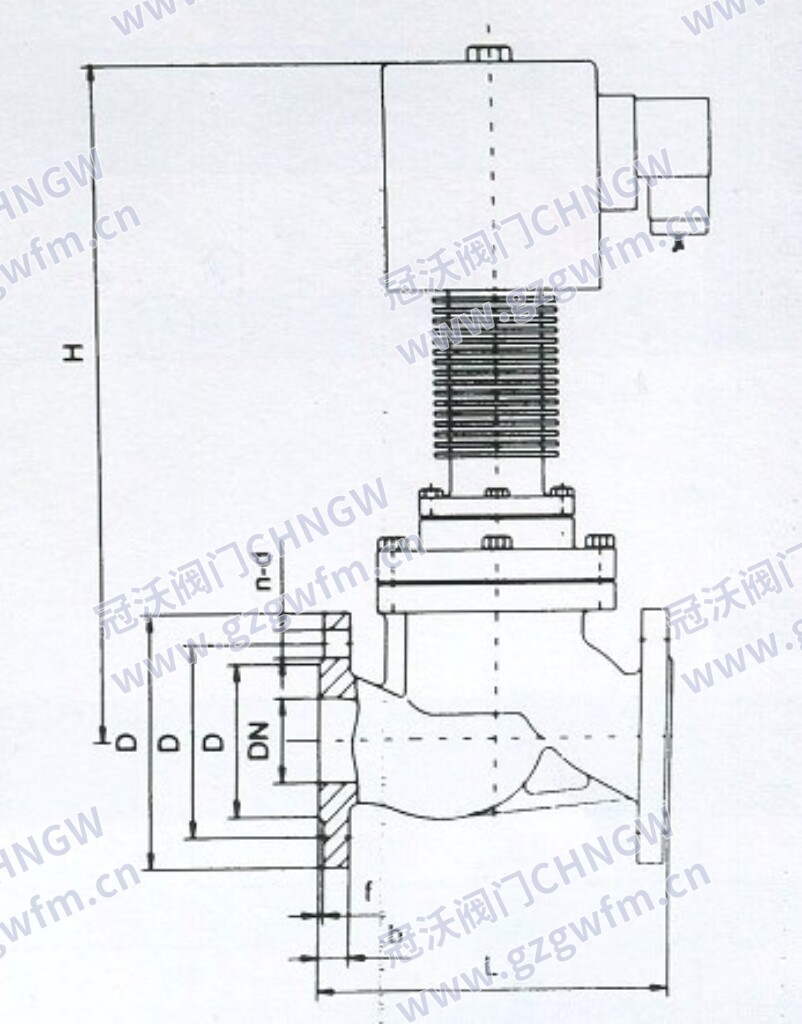

ZCG Stainless Steel Flange High Temperature 2-Way Solenoid Valve With Heat Sink Technical Specifications
DN	H	D	D1	D2	n-d	f	b	L
10	465	90	60	41	4-φ14	2	14	130
15	465	95	65	46	4-φ14	2	14	130
20	465	105	75	56	4-φ14	2	16	150
25	465	115	85	65	4-φ14	3	16	160
32	475	140	100	76	4-φ18	3	18	180
40	490	150	110	84	4-φ18	3	18	200
50	505	165	125	99	4-φ18	3	20	230
65	525	185	145	118	8-φ18	3	22	290
80	535	200	160	132	8-φ18	3	24	310
100	565	235	190	156	8-φ22	3	24	350
125	580	270	184	184	8-φ26	3	26	400
150	605	300	211	211	8-φ26	3	28	480
